Ultrafiltration: Flat Sheet Membranes

Synder offers flat sheet Ultrafiltration membranes for all membrane types that are currently available. Standard sizes are 12″ x 12″ and 1m x 1m, but custom sizes and flat sheet rolls are also available upon request. Flat sheet membranes are commonly purchased for small-scale lab testing to determine which cut-off is most appropriate for each given application, as they are easy to install and use with a test unit.

Ultrafiltration membranes have a molecular weight cut-off range of 1,000 to 500,000Da. These types of membranes have the ability to reject large macromolecules and proteins, and are widely applied throughout the dairy, food & beverage, biotech, and pharmaceutical industries.

In certain high solids applications, flat sheet ultrafiltration membranes provide excellent performance (membrane life vs. operating cost). Unlike hollow fiber membranes, flat sheet ultrafiltration membranes have a strong support material in which the polymeric membrane layer is rooted that increases physical durability substantially.

Synder Filtration offers a comprehensive line of both dry and wet ultrafiltration flat sheet membrane available in a wide range of molecular weight cut-offs. With product sizes ranging from one square foot to thousands of linear feet, Synder can supply UF flat sheet membranes for process research, pilot testing, spiral element winding, and for use in plate & frame membrane systems.

Membrane Type Polymer Molecular Weight Cut-Off
XT UF* PES 1,000
VT UF* PES 3,000
MT UF* PES 5,000
ST UF* PES 10,000
SM UF* PES 20,000
MK UF* PES 30,000
MQ UF* PES 50,000
LY UF* PES 100,000
LV UF* PES 200,000
LX UF* PES 300,000
PZ UF PAN 30,000
PY UF PAN 100,000
PX UF PAN 400,000
V3 UF*1 PVDF 30,000
V4 UF*1 PVDF 70,000
V5 UF*1 PVDF 200,000
V6 UF*1 PVDF 500,000
V7 UF*1 PVDF 800,000
BN UF* PVDF 50,000
BY UF* PVDF 100,000
BX UF* PVDF 250,000
A6 UF* PVDF 500,000

*MAX (High Temperature/High pH) Models Also Available
1Only Available In Industrial Grade

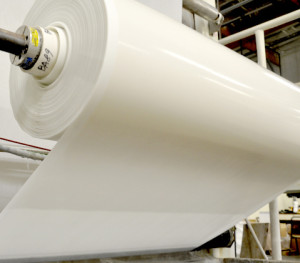

Synder typically holds a large inventory of flat sheet membrane rolls in order to provide our customers with the fastest possible lead times. We take pride in our ability to provide timely, knowledgeable, and friendly service, and aim to do business the right way.

Ultrafiltration flat sheet membranes may also be provided in specific die cut patterns after an initial feasibility assessment is completed by Synder’s experienced technical staff. In addition, Synder offers a membrane development program for custom membranes uniquely designed for specialty processing applications.

Please contact us for more information. You will receive a personal response from one of our experienced team members within 24 hours.
