Sanitary Ultrafiltration Spiral-Wound Element
PX (PAN 400kDa)
Synder Filtration’s Ultrafiltration Elements offer an
optimal combination of both flux and rejection in a
comprehensive range of MWCO’s.
Contact us today
to learn more about our complete line of membrane
products and services.
PX, along with PY and PZ, are all polyacrylonitrile (PAN) based ultrafiltration membrane originally developed for oil removal in wastewater treatment. PX has the largest pore size of the three PAN membranes, with a molecular weight cut-off of 400kDa. In a recent emulsified oil case study, PX demonstrated its ability to remove >99% of oil while maintaining a steady state flux, comparable to that of a leading competitor. The additional hydrophilicity makes it suitable for a wide range of industrial applications requiring the removal of oils for discharge or reuse.
STANDARD SERIES BENEFITS
- Widest range of UF MWCO’s available
- Good resistance to pH and temperature
- High resistance to fouling
- Customizable dimensions for unique housings
COMMON APPLICATIONS
- Corn wet milling
- Dairy stream clarification
Element Specifications
RECOMMENDED OPERATING PARAMETERS
Operating Parameters | |
Maximum Temperature | 55°C (131°F) |
pH Range @ Max Temperature | 3-10.5 |
pH Range @ Ambient Temperature | 3-10 |
Pressure | PSI | Bar |
Max Inlet Pressure | 120 | 8.3 |
Min Outlet Pressure | 10 | 0.7 |
Max Differential Pressure per Element | 18 | 1.2 |
Max Permeate Backpressure | 5 | 0.3 |
Note: Soft start on boost pumps required to rninimize pressure/flow shocks to elements.
Cleaning Parameters | |
Maximum Temperature (Short term <30min) | 50°C (122°F) |
pH Range @ Max Temperature | 3-10.5 |
pH Range @ Ambient Temperature | 3-10 |
Chlorine | Norm PPM | Max PPM |
Free Chlorine During Operation | 0 | <0.1 |
Chlorine During CIP at pH10.5 and 50°C | 150 | 180 |
Note: Maximum chlorine exposure for all elements is 30 minutes per day at pH and temperature conditions listed above.
Dairy Product Total Solids Limits | Feed Spacer (in mils)
|
|||||||
Sweet Whey Max. T.S. | 15 | 25 | 28 | 30 | ||||
Acid Whey Max. T.S. | 15 | 24 | 26 | 28 | ||||
Skim Milk Max. T.S. | 14 | 24 | 26 | 28 | ||||
Whole Milk Max. T.S. | 15 | 30 | 33 | 35 |
Note: Trials should be made to determine temperature and viscosity effects.

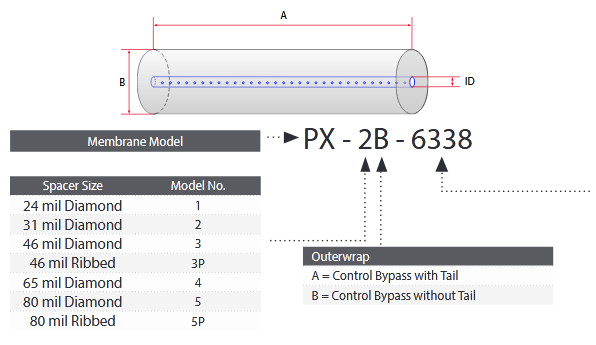

Element Dimensions
Element | Model No. | Diameter (B) in | Length (A) in | P.W.T. ID |
1.8" | 1812F | 1.8 | 12 | 0.63 |
2.5" | 2519 2540F 2540M* |
2.5 2.5 2.5 |
19.25 40 38 |
0.63 0.63 0.75 |
3.8" | 3838 3838.75 3850 3938.75 |
3.8 3.8 3.8 4.0 |
38 38.75 50 38.75 |
0.83 0.83 0.83 0.63 |
4.3" | 4333 4335 4335.5 4336 4338 |
4.3 4.3 4.3 4.3 4.3 |
33 35 35.5 36 38 |
0.83 0.83 0.83 0.83 0.83 |
5.8" | 5838 | 5.8 | 38 | 1.14 |
6.3" | 6338 6324 |
6.3 6.3 |
38 24 |
1.14 1.14 |
6.4" | 6438 6424 |
6.4 6.4 |
38 24 |
1.14 1.14 |
7.8" | 7838 7824 |
7.8 7.8 |
38 24 |
1.14 1.14 |
8" | 8038 8040 8238 8240 8338 8340 |
8.0 8.0 8.2 8.2 8.3 8.3 |
38 40 38 40 38 40 |
1.14 1.14 1.14 1.14 1.14 1.14 |
9.8" | 9838 | 9.8 | 38 | 1.14 |
10" | 10338 | 10.3 | 38 | 1.14 |
*1″ permeate tube extensions (0.75″ OD)
Recommended Element Cross Flow Rate
Element | Feed Spacer (in mils)
|
||||||||||
1.8" | m3/hr gpm |
1 4 |
1 5 |
1 6 |
2 7 |
2 7 |
|||||
2.5" | m3/hr gpm |
2 9 |
2 10 |
3 11 |
3 12 |
3 13 |
|||||
3.8" | m3/hr gpm |
5 22 |
6 25 |
7 29 |
8 33 |
8 35 |
|||||
4.3" | m3/hr gpm |
6 29 |
7 32 |
9 38 |
10 44 |
10 46 |
|||||
5.8" | m3/hr gpm |
12 51 |
13 59 |
16 69 |
18 78 |
19 83 |
|||||
6.3" | m3/hr gpm |
15 65 |
17 74 |
20 88 |
22 99 |
24 105 |
|||||
8" | m3/hr gpm |
21 94 |
24 107 |
29 128 |
33 143 |
35 154 |
|||||
10" | m3/hr gpm |
42 184 |
48 213 |
57 250 |
64 283 |
68 299 |
The recommended cross flow rate will be subject to differential pressure limitations and specific applications. Please consult Synder Filtration if additional information is needed.
Membrane Area(SQ. FT.)
Element | Model No. | Feed Spacer (in mils)
|
|||||||||
1.8" | 1812F | 4.3 | 3.6 | 2.9 | 2.1 | 1.8 | |||||
2.5" | 2519 2540M 2540F |
15 34 35 |
13 29 30 |
10 22 23 |
8 17 18 |
7 15 16 |
|||||
3.8" | 3838 3838.75 3850 3938.75 |
85 86 100 102 |
72 74 84 89 |
58 59 70 69 |
46 47 52 53 |
38 39 46 47 |
|||||
4.3" | 4333 4335 4335.5 4336 4338 |
99 105 107 108 115 |
86 91 93 94 100 |
66 71 72 73 77 |
53 56 57 58 62 |
44 47 48 49 52 |
|||||
5.8" | 5838 | 210 | 184 | 147 | 114 | 96 | |||||
6.3" | 6324 6338 |
150 245 |
134 220 |
107 176 |
83 136 |
70 115 |
|||||
6.4" | 6424 6438 |
157 258 |
140 230 |
112 184 |
83 136 |
74 122 |
|||||
7.8" | 7824 7838 |
242 396 |
210 344 |
166 273 |
132 216 |
110 180 |
|||||
8" | 8038 8040 8238 8240 8338 8340 |
414 414 441 441 450 450 |
368 368 384 384 400 400 |
287 287 302 302 311 311 |
225 225 238 238 245 245 |
189 189 201 201 207 207 |
|||||
9" | 9838 | N/A | 564 | 440 | 351 | 296 | |||||
10" | 10338 | N/A | 620 | 492 | 386 | 326 |
TECHNICAL NOTES
For element sizes not listed, please call or email Synder Filtration for details. We can design an element to fit your exact needs -just specify the element outer diameter (OD) or vessel/housing inner diameter (ID), element inner diameter (ID), and length. Elements are also available with or without a controlled bypass tail. Additional feed spacers are also available. Trials should be conducted to determine optimal application conditions.
Element Descriptions
Model No. | OD (in.) | L (in.) | ID* (in.) | Weight (lb) | Weight (kg) |
1812F | 1.8 | 12 | 0.63 | 1.0 | 0.5 |
2519 2540F 2540M* |
2.5 2.5 2.5 |
19.25 40 38 |
0.63 0.63 0.75 |
2 4 4 |
0.9 1.8 1.8 |
3838 3838.75 3850 3938.75 |
3.8 3.8 3.8 4.0 |
38 38.75 50 38.75 |
0.83 0.83 0.83 0.63 |
10 10 13 10 |
4.5 4.5 5.9 4.5 |
4333 4335 4335.5 4336 4338 |
4.3 4.3 4.3 4.3 4.3 |
33 35 35.5 36 38 |
0.83 0.83 0.83 0.83 0.83 |
11 11 11 11 12 |
5.0 5.2 5.2 5.2 5.4 |
5838 | 5.8 | 38 | 1.14 | 15 | 7 |
6338 6324 6438 6424 |
6.3 6.3 6.4 6.4 |
38 24 38 24 |
1.14 1.14 1.14 1.14 |
16 17 29 18 |
7 7.7 13.2 8.2 |
7838 7824 |
7.8 7.8 |
38 24 |
1.14 1.14 |
40 26 |
18.2 11.8 |
8038 8040 8238 8240 8338 8340 |
8.0 8.0 8.2 8.2 8.3 8.3 |
38 40 38 40 38 40 |
1.14 1.14 1.14 1.14 1.14 1.14 |
38 39 38 40 40 40 |
17.2 17.7 17.2 18 18 18 |
9838 | 9.8 | 38 | 1.14 | 42 | 19.1 |
10338 | 10.3 | 38 | 1.14 | 50 | 22.7 |
*1″ permeate tube extensions (0.75″ OD)
Note: Different diameters are available. Please specify your requirements when ordering. Specifications are subject to change without notice.
