Industrial UF Treated Membrane for Cathodic Paint Applications
V3 (PVDF 30,000Da)
Synder Filtration’s Ultrafiltration Elements offer an optimal combination of both flux and rejection in a comprehensive range of MWCO’s. Contact us today to learn more about our complete line of membrane products and services.
V-SERIES BENEFITS
- The V-Series has a proprietary hydrophilic charge to repel paint particles and promote maximum flux rates.
- The V-Series was specifically designed for processing cathodic paint, while the A6 is intended for processing anodic paint. V6 (PVDF 500kDa) is the most popular product for processing cathodic paint.
- Membrane only requires one cleaning chemical plus acid. No other additives required.
- Integrated end plugs allow for easy integration and removal.
- Synder maintains the largest E-Coat-devoted sales, engineering, and support staff of any membrane manufacturer in the world.
RECOMMENDED OPERATING PARAMETERS
Operating Parameters | |
Typical Operating Flux | 5-35 GFD (8-60 LMH) |
Membrane Type | Synder Proprietary – PVDF Treated Membrane |
Membrane Construction | Spiral-Wound with netted or fiberglass outerwrap |
Maximum Temperature | Continuous Operation: 122°F (50°C) Clean-In-Place (CIP): 110°F (43.3°C) |
pH Range | Continuous Operation: 1-11 Clean-In-Place (CIP): 2-10.5 |
Maximum Pressure Drop | FRP Element: 35psi (241kPa) Net Wrap Element: 17psi (117kPa) |
Chlorine Tolerance | 180ppm maximum per cleaning cycle |

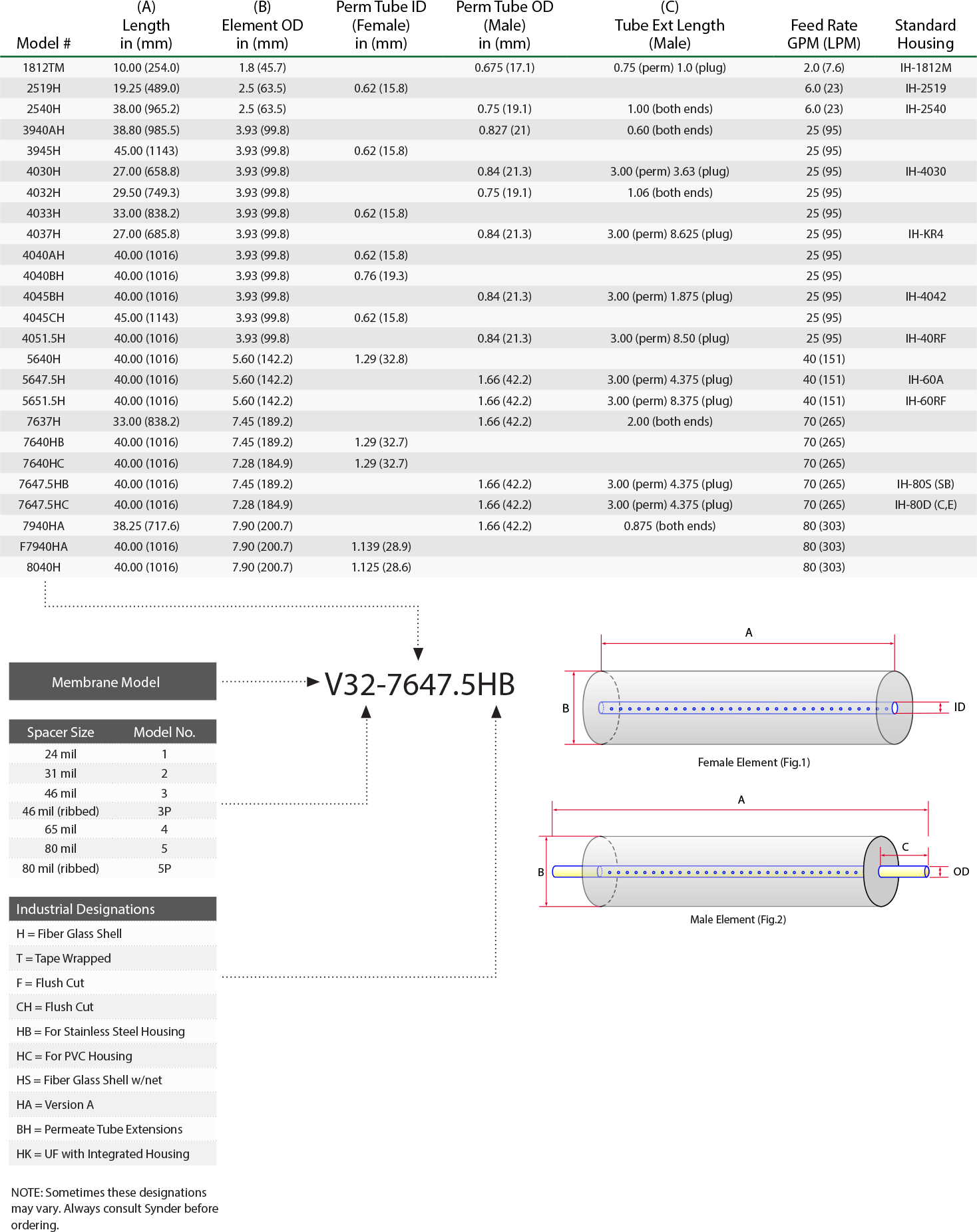

DIMENSIONS & WEIGHT
TECHNICAL NOTES
For element sizes not listed, please call or email Synder Filtration for details. We can design an element to fit your exact needs – just specify the element outer diameter (OD) or vessel/housing inner diameter (ID), element inner diameter (ID), and length. Elements are available with or without a controlled bypass tail. Additional feed spacers are also available.
Trials should be conducted to determine optimal application conditions.
Refer to installation, cleaning, and storage procedures for more details.
